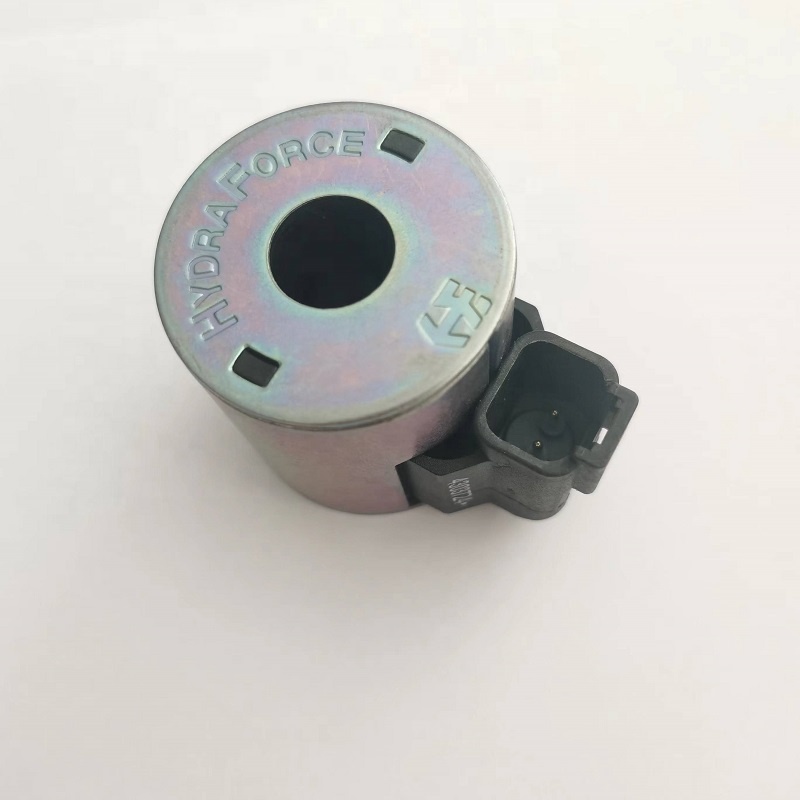

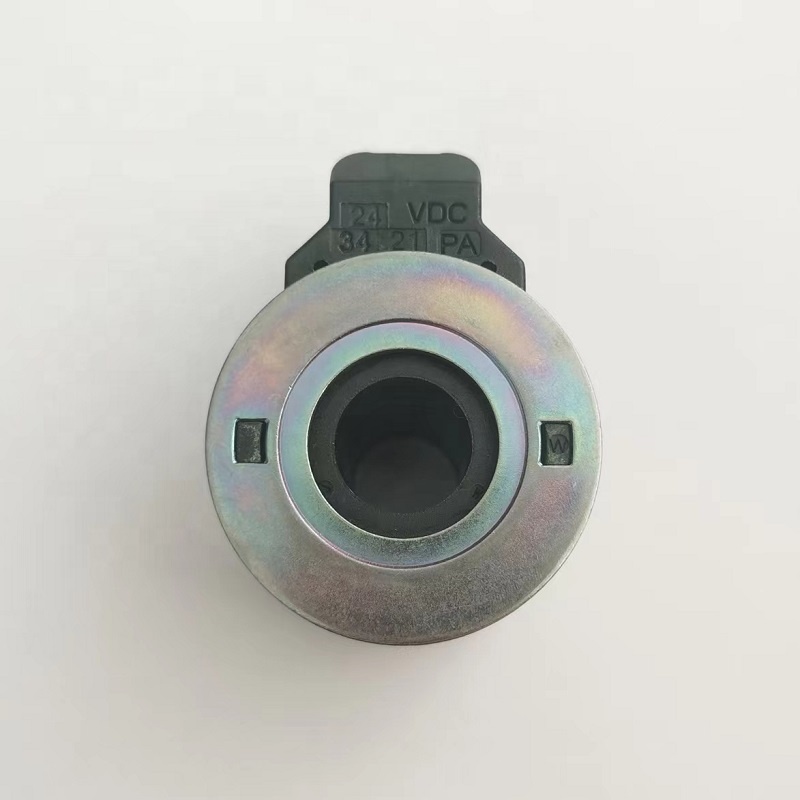

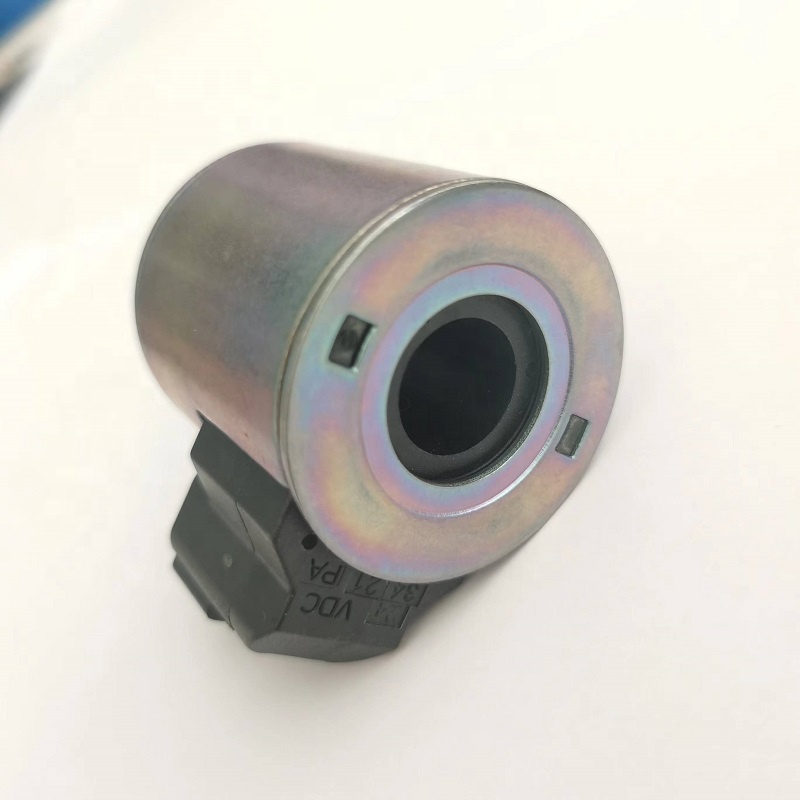

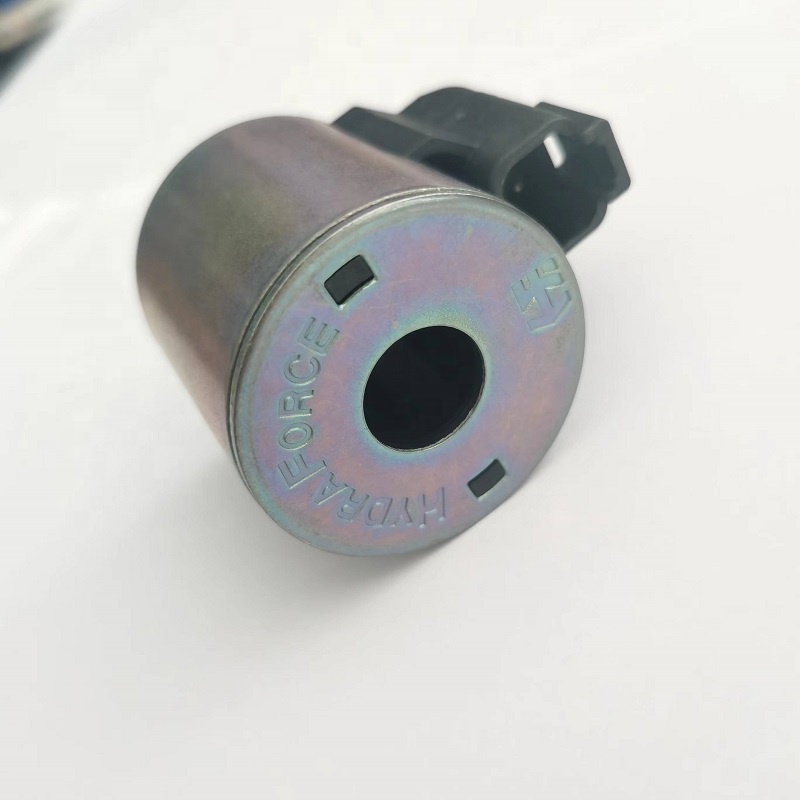

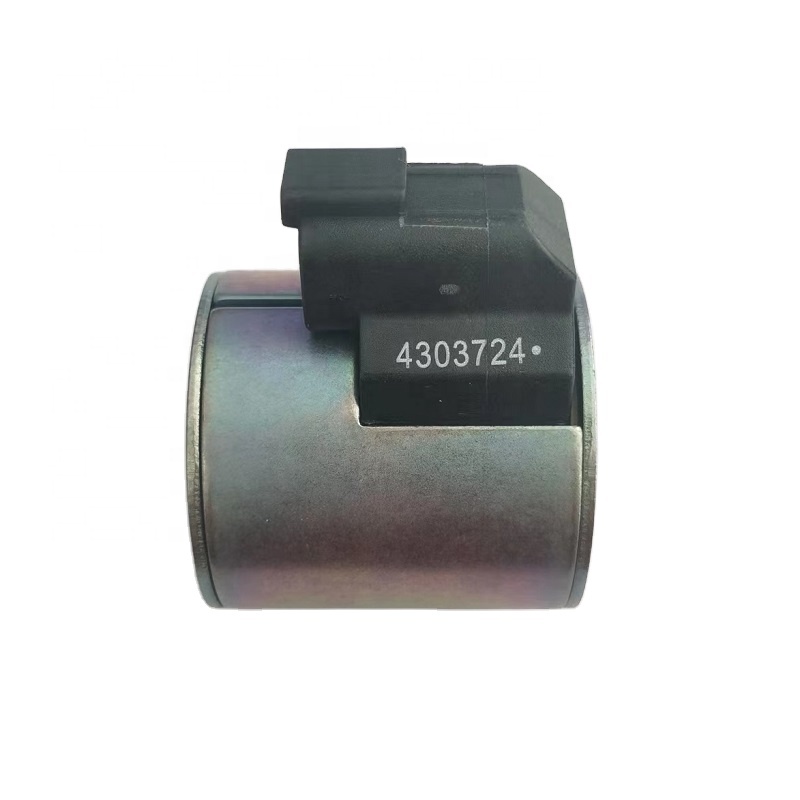

High-Precision 24V Solenoid Coil 4304124 / 4303724 with Diode for Stacker Gearbox Systems
Designed for dependable performance and seamless integration, the
solenoid coil 4304124 / 4303724 with diode is an essential component in the hydraulic and electric control system of front stacker gearboxes. Engineered to OEM standards, this coil ensures precise actuation of gearbox solenoids, delivering efficient gear changes and reliable system response under demanding operational conditions.
What Is a 24V Solenoid Coil and Why It Matters
A solenoid coil is the electromagnetic core of a valve or actuator that converts electrical energy into mechanical motion. In stacker gearboxes, it enables or restricts the flow of hydraulic fluid for transmission engagement and disengagement. The diode embedded in this model adds surge protection, extending the life of both the coil and the control circuit.
Product Highlights
- Part Numbers: 4304124, 4303724
- Feature: Built-in Diode for Reverse Voltage Protection
- Application: Gearbox Solenoid System in Front Stackers
- Mounting Type: Direct-fit, OEM-Compatible
- Voltage: 24V DC (Standard in industrial vehicles)
Why Choose This 24V Solenoid Coil for Your Equipment?
The reliability of transmission and stacking operations directly depends on the performance of its control electronics. A degraded or underperforming coil can lead to erratic gear shifts, delayed engagement, or total failure in hydraulic control. This OEM-equivalent
solenoid coil meets industrial-grade durability and heat resistance, making it ideal for 24/7 operational settings such as port terminals, freight yards, and container depots.
Benefits of Upgrading to 4304124 / 4303724 24V Solenoid Coil
- Improves gearbox responsiveness under load
- Reduces wear on valve bodies through stable magnetic actuation
- Protects circuits from reverse voltage damage via integrated diode
- Minimizes downtime due to precise, long-life winding insulation
- Compatible with widely-used front stacker systems
Market Acceptance and Technical Validity
This solenoid coil is widely adopted across international fleet maintenance programs. Its technical standards align with established electrical equipment guidelines defined by:
U.S. National Highway Traffic Safety Administration (NHTSA)
SAE International (J1939 Control System Standards)
Signs You May Need to Replace Your 24V Solenoid Coil
- Stacker fails to shift or respond when engaged
- Excessive heat around gearbox controller
- Diagnostic code related to coil voltage drop
- Audible buzzing or chattering from solenoid unit
Product Specification Summary
| Product Name | Solenoid Coil with Diode |
| Part Numbers | 4304124 / 4303724 |
| Voltage | 24V DC |
| With Diode | Yes |
| Usage | Stacker Gearbox Solenoid System |
Installation Notes
This coil is designed for direct replacement with minimal tools. Ensure polarity alignment if wiring manually. Diode function requires correct current direction to avoid reverse flow.
Ordering & Support
To guarantee proper fitment, confirm compatibility with your stacker gearbox model prior to purchase. Our team can assist in matching components by serial number, year, and controller type.
Conclusion
The 24V solenoid coil 4304124 / 4303724 with diode offers reliable, long-term performance for stacker gearbox applications. Whether you’re managing a single machine or an entire port fleet, this component is a smart investment for maintaining uptime and mechanical precision.
