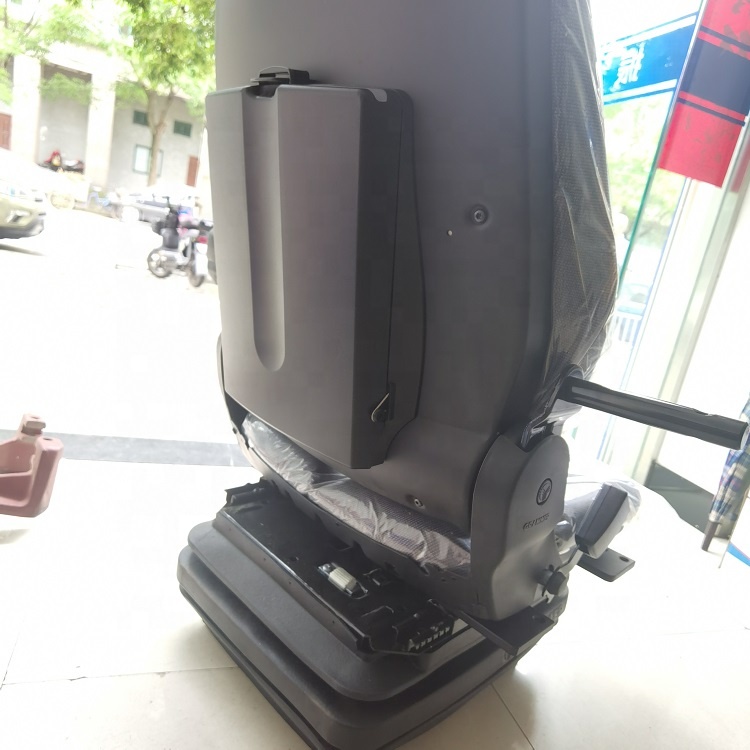

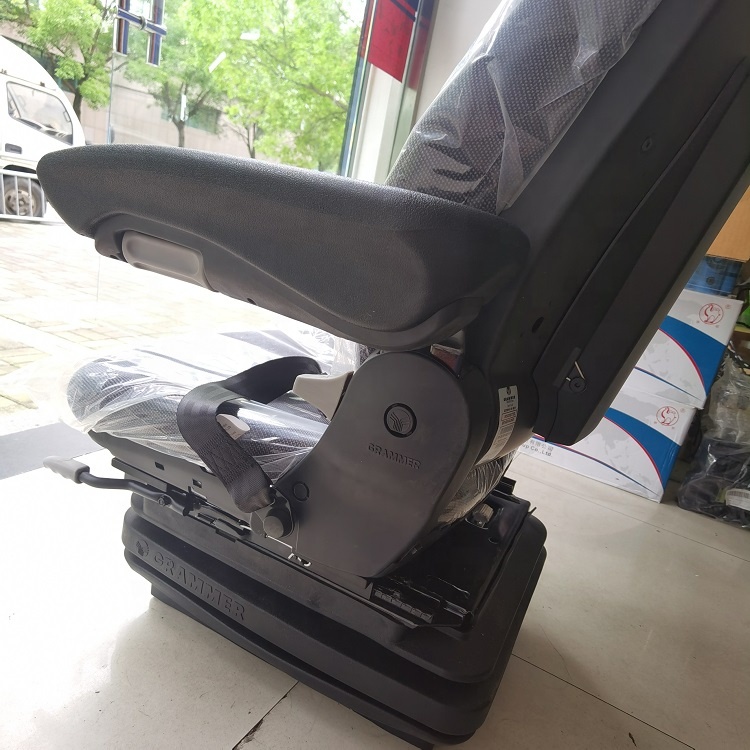

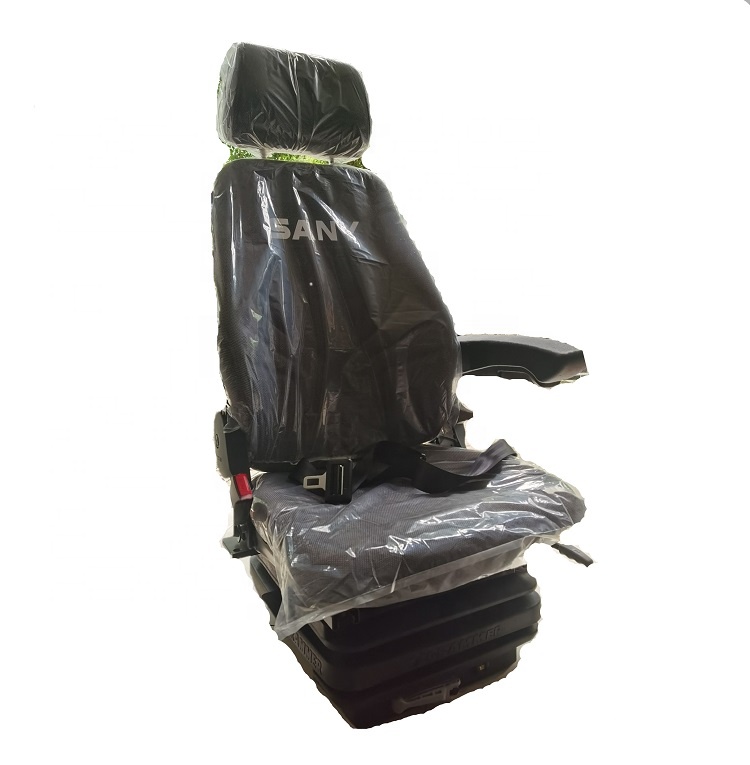

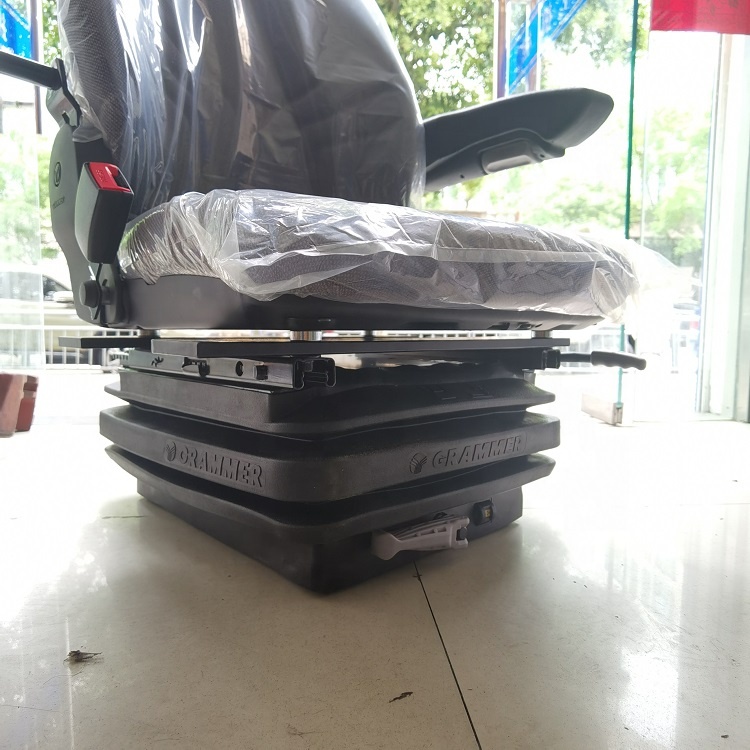

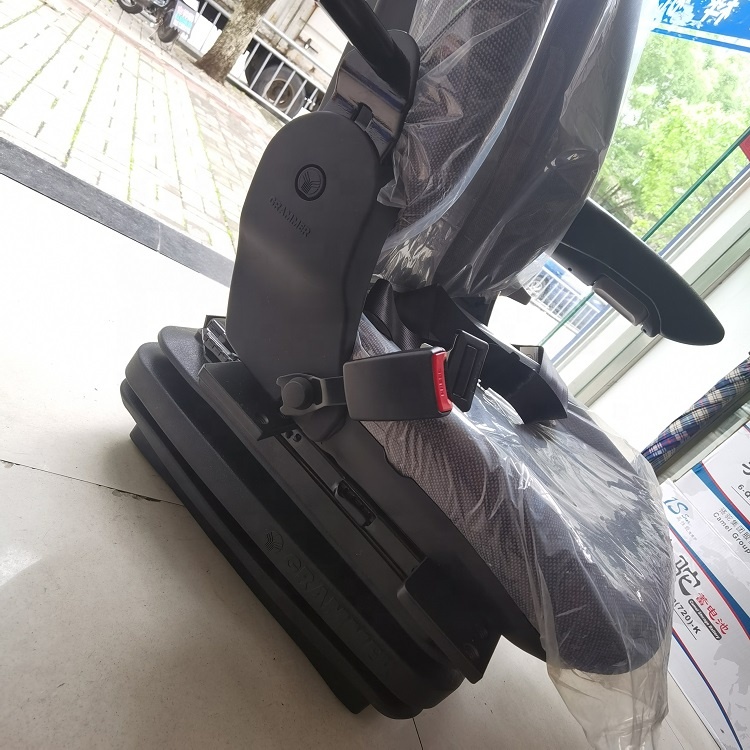

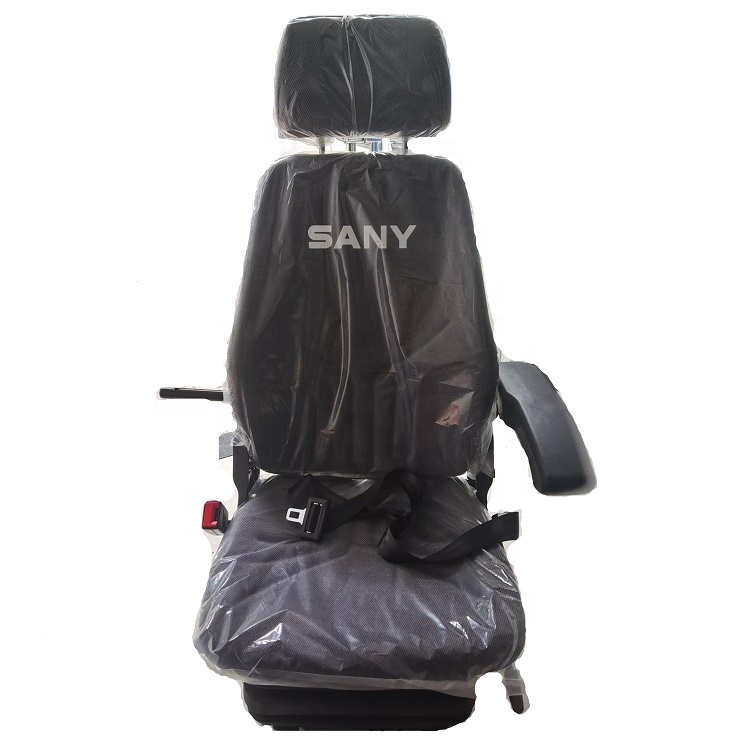

Grammer Mechanical Suspension Seat MSG85/722 (Part Number: 60149848) is engineered to provide superior comfort and durability for operators of heavy machinery. Specifically designed to be compatible with SANY 10422631 console assembly, this seat ensures optimal ergonomics and reduced operator fatigue during long working hours.
Key features of the Grammer Mechanical Suspension Seat include:
- Mechanical Suspension System: Offers a suspension stroke of up to 3.9 inches (100 mm), effectively absorbing shocks and vibrations.
- Weight Adjustment: Accommodates operators weighing between 110 to 285 lbs (50 to 130 kg), ensuring personalized comfort.
- Height Adjustment: Provides up to 3.1 inches (80 mm) of vertical adjustment to suit various operator preferences.
- Fore/Aft Adjustment: Allows for 210 mm of seat movement to accommodate different body sizes and ensure optimal control access.
- Adjustable Backrest: Ranges from 10° to 70°, enabling operators to find their preferred seating angle.
- Seat Base Tilt: Adjustable between -3° to +5°, promoting proper posture and comfort.
- Seat Cushion Depth Adjustment: Offers 60 mm of adjustment to reduce pressure on the backs of knees.
- Detachable Headrest: Provides additional neck support and can be removed as needed.
- Mechanical Lumbar Support: Easily adjustable to provide optimal lower back support.
- Seat Rotation: Swivels between -120° to +120°, enhancing operator mobility and visibility.
- Foldable Armrests: High-comfort armrests that can be folded away when not in use.
- Fire Protection Compliance: Meets DIN, EN, and GOST standards for fire safety.
This Grammer Mechanical Suspension Seat is ideal for operators seeking enhanced comfort and reduced fatigue. Its ergonomic design aligns with guidelines from the Occupational Safety and Health Administration (OSHA), promoting better posture and reducing the risk of musculoskeletal disorders.
For more information on vehicle seating standards and safety, refer to the National Highway Traffic Safety Administration (NHTSA).
Upgrade your SANY equipment with the Grammer Mechanical Suspension Seat MSG85/722 to ensure operator comfort, safety, and productivity.
