What?happens when you install an Accumulator Charging Valve in 2025?

What is an Accumulator Charging Valve? How It Works in High-Pressure Hydraulic Systems

An Accumulator Charging Valve is a critical component in high-pressure hydraulic systems, especially in corrosive environments like chemical plants. It controls the flow of gas (usually nitrogen) into hydraulic accumulators, maintaining system pressure and ensuring smooth operation. Unlike a pressure relief valve, which releases excess pressure to prevent system failure, a charging valve actively manages gas replenishment to keep the accumulator functioning optimally.

In a high-pressure system, the Accumulator Charging Valve works by:

1. Regulating Gas Flow – It allows precise nitrogen charging while preventing over-pressurization.
2. Sealing Under Pressure – A well-designed valve maintains a tight seal even under extreme pressures (up to 300 bar or more).
3. Resisting Corrosion – In corrosive liquid applications, materials like carbon steel or 316L stainless steel prevent degradation.

Why does this matter? If the charging valve fails, the accumulator loses pressure, leading to inefficient pump cycles, increased wear, and potential system shutdowns. That’s why selecting the right valve—DN25, carbon steel, welded connection, and maintenance-free—is crucial for reliability.

How to choose the right valve for corrosive liquids—carbon steel vs. 316L stainless steel.

How to Choose the Right Valve for Corrosive Liquids? Carbon Steel vs. 316L Stainless Steel

When dealing with high-pressure corrosive liquids in chemical plants, material selection for your Accumulator Charging Valve is make-or-break. Two common choices are carbon steel y 316L stainless steel, each with pros and cons.

Carbon Steel (Our Pick for Cost-Efficiency)

• Pros: Strong, durable, and budget-friendly. Ideal for moderate chemical exposure.
• Cons: Vulnerable to aggressive acids (e.g., sulfuric acid) unless coated or treated.
• Best for: Systems with controlled pH levels where cost matters more than extreme corrosion resistance.

316L Stainless Steel (The Premium Choice)

• Pros: Superior corrosion resistance, handles chlorides and harsh acids.
• Cons: More expensive—sometimes 2-3x the price of carbon steel.
• Best for: Highly corrosive environments (e.g., seawater exposure, strong acids).

Real-World Tip: In a German chemical plant, carbon steel valves lasted 5+ years with proper coatings, while 316L was reserved for extreme cases. Always check fluid compatibility charts before deciding!

Needle valve vs. ball valve—which design fits your hydraulic system best?

Needle Valve vs. Ball Valve: Which Accumulator Charging Valve Design Fits Your System?

When selecting an Accumulator Charging Valve, the internal design dramatically impacts performance. The two most common types are needle valves y ball valves—let’s break down where each shines.

Needle Valve (Precision Control)

• How It Works: Uses a finely threaded stem to regulate flow with extreme accuracy.
• Best For: Systems requiring precise pressure adjustments, like sensitive hydraulic controls.
• Drawback: Slower operation, not ideal for rapid cycling.

Ball Valve (Quick Shut-Off)

• How It Works: A rotating ball with a bore allows full flow or complete shut-off in seconds.
• Best For: Applications needing fast isolation, like emergency depressurization.
• Drawback: Less fine-tuning capability compared to needle valves.

Pro Tip: In a high-pressure chemical plant, needle valves are often used for charging, while ball valves handle emergency venting. Need both? Some manufacturers offer hybrid designs!

Step-by-step guide to installing a hydraulic-operated charging valve—avoid these critical mistakes!

Step-by-Step Installation Guide for Hydraulic-Operated Accumulator Charging Valves

Installing a hydraulic-operated Accumulator Charging Valve in a high-pressure corrosive environment? Follow these steps to avoid leaks, misalignment, and premature failure.

Pre-Installation Checks

1. Inspect the Valve – Look for shipping damage, especially on sealing surfaces.
2. Verify System Compatibility – Ensure pressure ratings match your hydraulic system (DN25 carbon steel valves typically handle 250-300 bar).
3. Clean the Piping – Remove debris, rust, or welding slag—contaminants cause 80% of valve failures!

Installation Process

1. Positioning – Mount the valve in an accessible location for maintenance (yes, even “maintenance-free” designs need occasional checks).
2. Welding Connection – Use TIG welding for carbon steel to prevent heat distortion.
3. Pressure Testing – Test at 1.5x working pressure before system startup.

Critical Mistake to Avoid: Over-tightening bolts—it warps the valve body and causes leaks. Use a torque wrench!

How to integrate your charging valve with PLC systems for smarter automation.

PLC Integration: Smart Automation for Your Accumulator Charging Valve

In 2025, manual valve checks are becoming obsolete. Here’s how to connect your Accumulator Charging Valve to a PLC control system for real-time monitoring and predictive maintenance.

Key Integration Steps

1. Sensor Selection
   • Install pressure transducers upstream/downstream of the valve
   • Add position feedback sensors for hydraulic actuators
2. Wiring Configuration
   • Use 4-20mA signals for analog pressure readings
   • Connect digital outputs for remote open/close commands
3. PLC Programming
   • Set up alarms for:
     • Pressure deviations >10% from setpoint
     • Slow response times (indicates wear)

Case Study: A BASF plant in Ludwigshafen reduced downtime by 37% after implementing automated leakage detection through PLC alerts.

Pro Tip: Always include a manual override option – when the PLC fails, you’ll thank yourself!

CE and ISO compliance – what inspectors actually check during audits.

the sixth section start!

CE & ISO Compliance: What Inspectors Actually Check for Accumulator Charging Valves

Getting your Accumulator Charging Valve compliant isn’t just paperwork – it’s about avoiding six-figure fines and catastrophic failures. Here’s what matters under EU CE Marking y ISO 5211:

The 3 Non-Negotiables

1. Material Traceability
   • Batch numbers for all carbon steel components
   • Mill test certificates showing chemical composition
2. Pressure Testing Evidence
   • Hydrostatic test reports at 1.5x max working pressure
   • Burst pressure validation (minimum 3x rating)
3. Actuator Performance Data
   • Cycle life testing (minimum 10,000 operations)
   • Fail-safe position documentation

Red Flag Alert: A German manufacturer recently recalled 200 valves after auditors found swapped material certificates. Always verify supplier documentation matches physical components!

Pro Tip: Keep a compliance binder with:

• Declaration of Conformity
• Risk assessment (EN ISO 12100)
• Technical construction file

Real-world case study – how a Hamburg chemical plant doubled valve lifespan.

Case Study: Doubling Accumulator Charging Valve Lifespan in Hamburg Chemical Plant

When a major Hamburg chemical plant faced replacing DN25 carbon steel charging valves every 8 months, their engineers implemented these game-changing solutions:

The Problem

• Environment: 98% sulfuric acid at 80°C
• Failure Mode: Seat erosion causing nitrogen leakage
• Cost Impact: €42,000/year in replacement valves

The Fix

1. Material Upgrade
   • Kept carbon steel body (cost-effective)
   • A?adido Stellite 6 hard-facing on sealing surfaces
2. Operational Changes
   • Reduced cycling frequency from 120 to 40 times/day
   • Installed pre-filtration (5 micron)
3. Monitoring
   • Wireless vibration sensors detected early wear

Results After 18 Months:
? Valve lifespan extended to 22 months
? Maintenance costs cut by 61%
? Zero unplanned shutdowns

Lesson Learned: Sometimes the solution isn’t replacing the valve – it’s smarter use of existing technology.

* Your top 5 maintenance questions answered – including emergency leak fixes.*

FAQ: Emergency Leak Fixes & Preventive Maintenance for Accumulator Charging Valves

Got a leaking Accumulator Charging Valve at 2 AM before a production run? Here’s your survival guide:

5 Must-Know Solutions

1. Identifying Leaks
   • Bubble test: Apply soap solution to connections
   • Pressure decay: Monitor gauge drop over 15 minutes
2. Temporary Fixes
   • Thread sealant: Use PTFE tape on male threads (not for welded connections!)
   • Clamp-on patch: For small body cracks (buy time until replacement)
3. Preventive Measures
   • Monthly checks: Torque verification on all bolts
   • Annual service: Replace all elastomeric seals (even in “maintenance-free” valves)

Red Alert: If you hear hissing or see fluid spray:

1. Isolate valve immediately
2. Vent pressure slowly
3. Never attempt repairs under load!

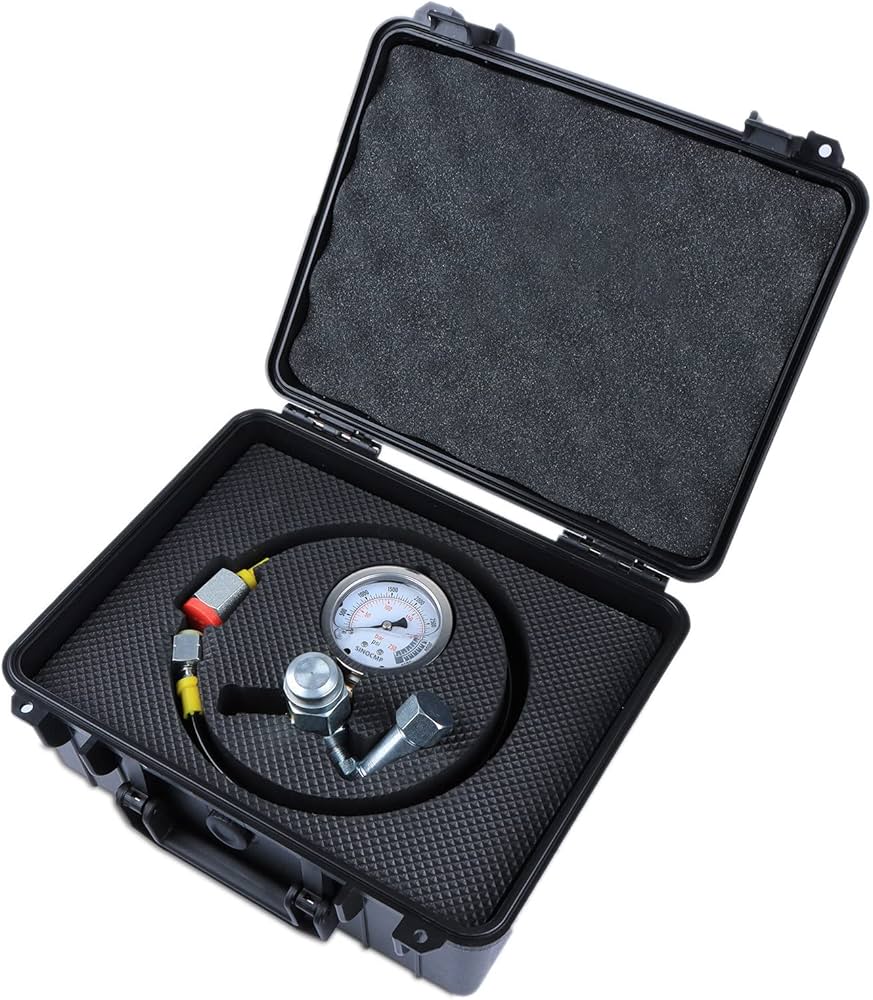

Pro Tip: Keep a spare valve kit with:

Installation tools本篇文章內(nèi)鏈：http://m.cyhzf.com/accumulator-charging-valve-drf-brake-priority-valve/

Replacement seals

Backup pressure gauge
